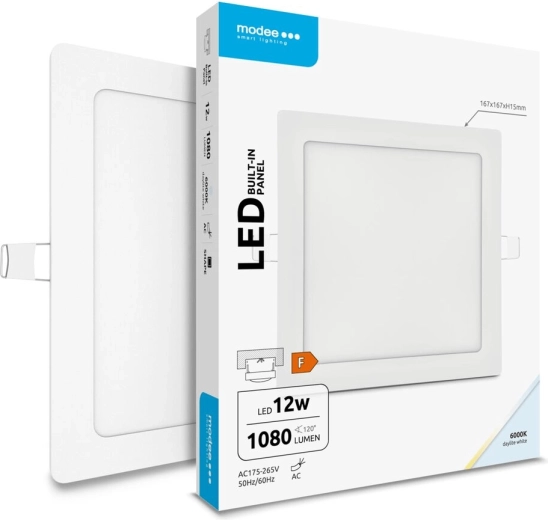

The Modee Lighting recessed square LED panel is ideal for modern ceiling lighting. It offers a luminous flux of 1080 lm, low power consumption of 12 W, and cool white 6000 K for bright, neutral light. Thanks to its easy installation with side clips, long lifespan of 30,000 h, and efficacy of 90 lm/W, it is a great choice for homes and offices alike.
The elegant and efficient square LED panel from Modee Lighting delivers uniform, glare-free illumination for hallways, kitchens, offices, and commercial spaces. The combination of a plastic body with an aluminum layer ensures reliable heat dissipation, extending the lifespan of the light source.
Installation is quick and clean: simply secure the panel using a pair of side spring clips into the prepared cutout. Stable operation at a mains voltage of AC 175–265 V ensures trouble-free performance even with supply fluctuations, while the IP20 rating is suitable for interiors without direct water exposure.
- Brightness and efficiency: 1080 lm at 12 W, efficacy 90 lm/W
- Cool white 6000 K: supports focus and high visual clarity
- Easy mounting: recessed installation in ceilings with side clips
- Durable design: plastic housing with inner aluminum layer for improved cooling
- Long lifespan: up to 30,000 hours of operation
Specifications
- Product type
- Recessed LED panel (square)
- Power
- 12 W
- Luminous flux
- 1080 lm
- Luminous efficacy
- 90 lm/W
- Correlated color temperature
- 6000 K (cool white)
- Supply voltage
- AC 175–265 V
- Ingress protection
- IP20
- Lifespan
- 30,000 h
- Panel dimensions
- 169 × 169 mm
- Cutout size
- 155 × 155 mm
- Material
- Plastic housing with inner aluminum layer
- Installation method
- Recessed, side spring clips
